Electric Caliper Winch

EC15 Scale Model — Electric Caliper Winch

Advanced electric caliper winch capability through multiple servo motors, dual load cells, and PLC-driven caliper brakes. Maximum and minimum towline forces are pre-set and continuously monitored, the system reacts instantly when thresholds are exceeded, preventing overloads and eliminating slack. No gearbox means low mass inertia and fast response.

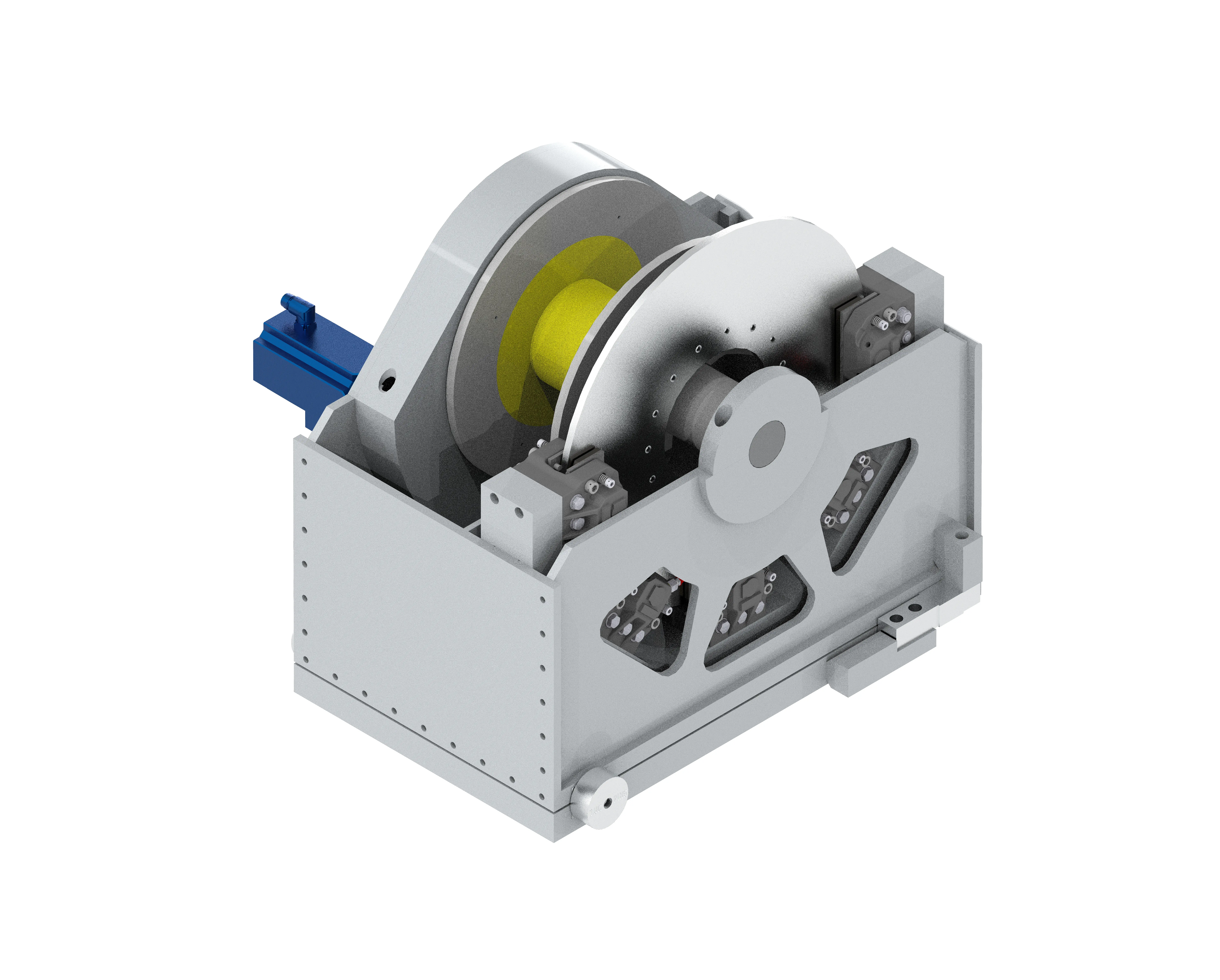

Side view Side view
Exploded view Exploded view
Technical Specification
Brake Holding Force150 kN
Synthetic Rope Diameter20 mm
Nominal Pull40 kN
Line Storage Capacity60 m
Nominal Line Speed60 m/min
Weight675 kg
Drum Diameter200 mm
Flange Diameter615 mm
Distance Between Flanges195 mm
Electric Motors5
Power per Motor7.5 kW
Caliper Brakes5
Key Benefits
Smart modular design — low and easy maintenance
Multiple electric motor redundancy
Multiple caliper brake redundancy
Single standardised footprint
No gearbox — reduced mass inertia
Reduced total weight
Reduced power requirements
Controlled emergency brake release
Fixed drumshaft — easier alignment
High recovery speed
