Electric Caliper Winch

EC100 — Electric Caliper Winch

Advanced electric caliper winch capability through multiple servo motors, dual load cells, and PLC-driven caliper brakes. Maximum and minimum towline forces are pre-set and continuously monitored,the system reacts instantly when thresholds are exceeded, preventing overloads and eliminating slack. No gearbox means low mass inertia and fast response.

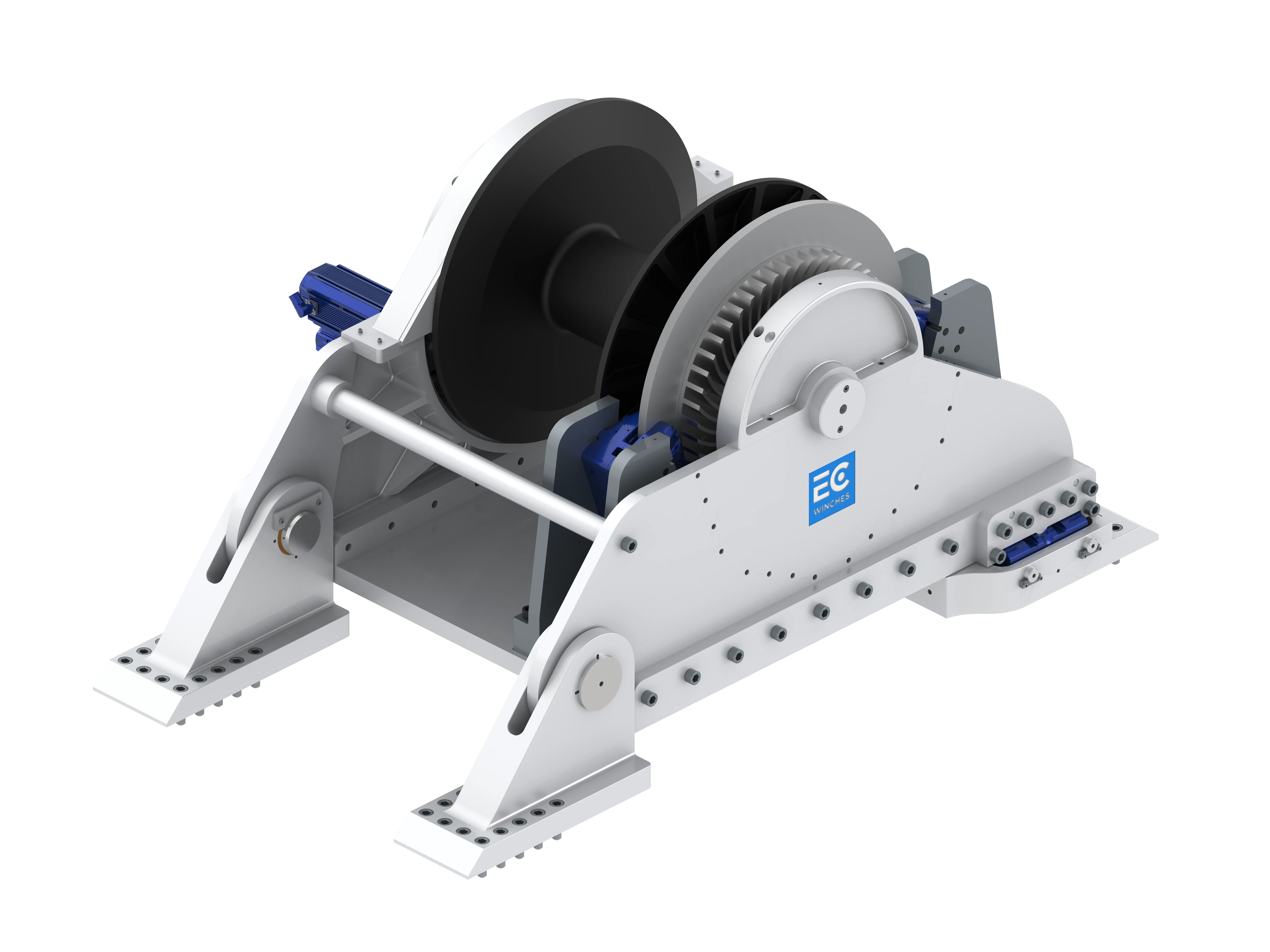

Side view Side view

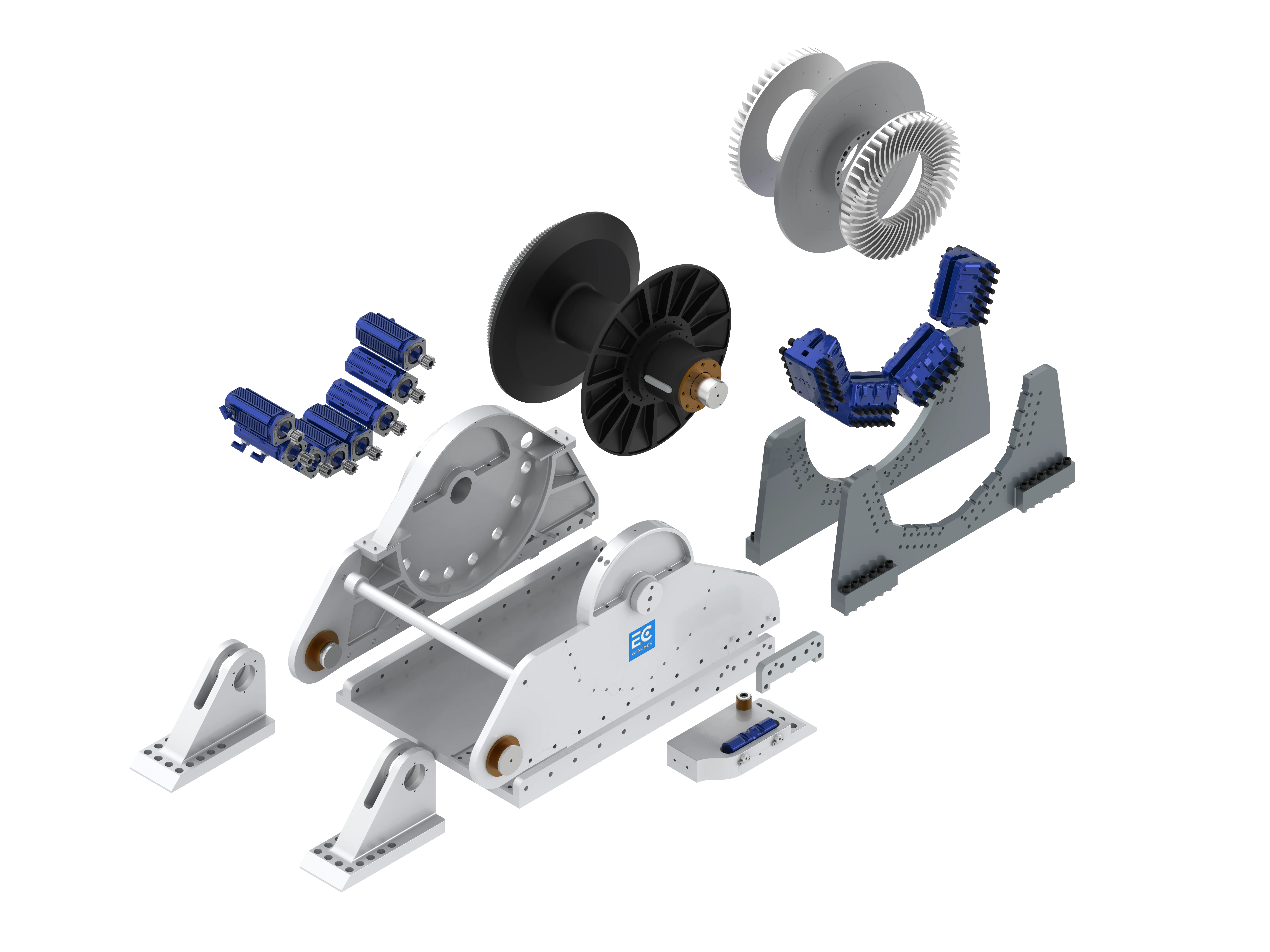

Exploded view Exploded view
Technical Specification
Brake Holding Force2150 kN
Synthetic Rope Diameter65 mm
Nominal Pull150 kN
Line Storage Capacity180 m
Nominal Line Speed70 m/min
Weight15 mt
Drum Diameter400 mm
Flange Diameter1400 mm
Distance Between Flanges700 mm
Electric Motors8
Power per Motor7.5 kW
Caliper Brakes4
Key Benefits
Smart modular design — low and easy maintenance
Multiple electric motor redundancy
Multiple caliper brake redundancy
Single standardised footprint
No gearbox — reduced mass inertia
Reduced total weight
Reduced power requirements
Controlled emergency brake release
Fixed drumshaft — easier alignment
High recovery speed
